Description: Ginetta G40 Dimensions & Trailers

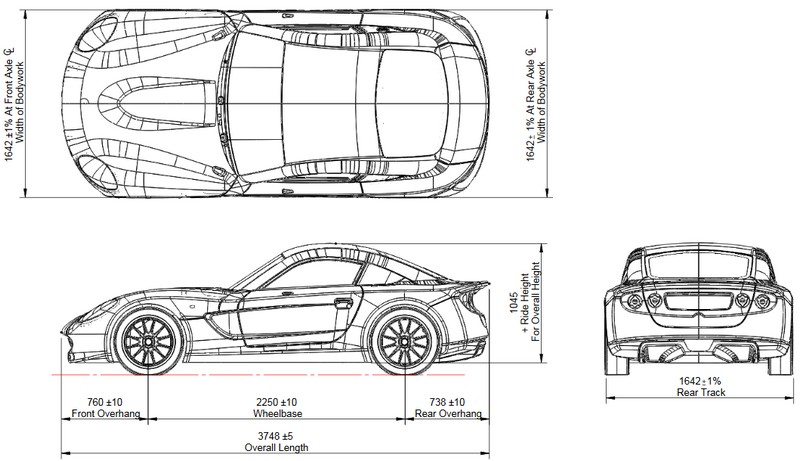

These dimensions are copied from factory drawings, from the PDF provided by Ginetta France


  • Wheelbase: 2,250 mm (88.6 in or 7' 4")
  • Length: 3,748 mm (147.6 in or 12' 3")
  • Width: 1,642 mm (64.6 in or 5' 5")
  • Height: 1,045 mm (41.1 in or 3' 5")

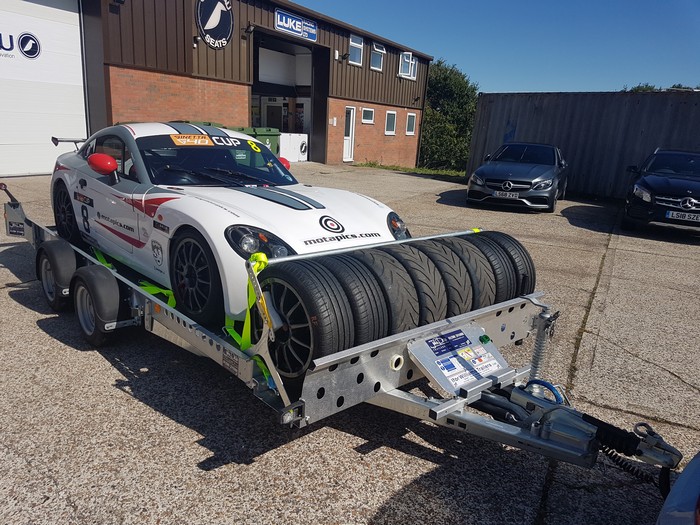

I use an Ifor Williams tralier, type CT136 twin axle with a tyre rack. The trailer is light (500 KG with no extras) and a good size for a G40.

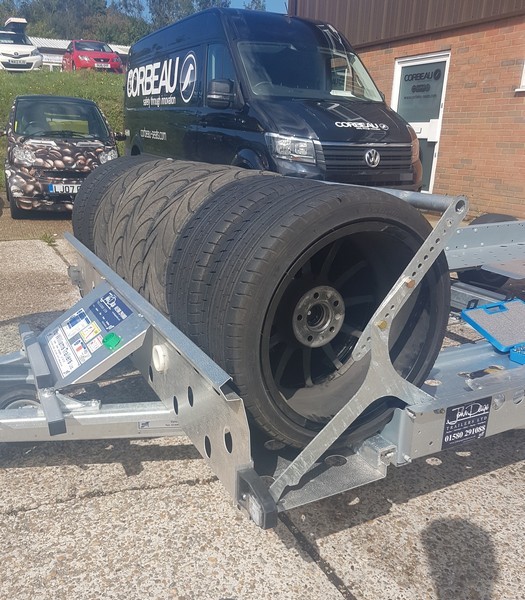

There's very little info on how the Ifor Williams tyre rack works, so here are two pictures to show how it looks with a straight bar. The system is locked with a padlock.

Ifor Williams tyre rack locking mechanism

Ifor Williams tyre rack locking mechanism

I have also used a Brian James Clubman trailer, an older equivalent of the current A4, and while this is a bit more difficult to use, there is no issue with the G40 bottoming out when loading.

Other feasible trailers look like:

  • Brian James C4 Blue (current range)
  • Brian James Clubman, tiltbed available (no longer manufactured)
  • Temared Carkeeper 4020S, tiltbed available (current range)
